May 1, 2025

"What does a sewer and some politicians have in common?"

the summary

what you need to make an informed decision

the

	May 1, 2025

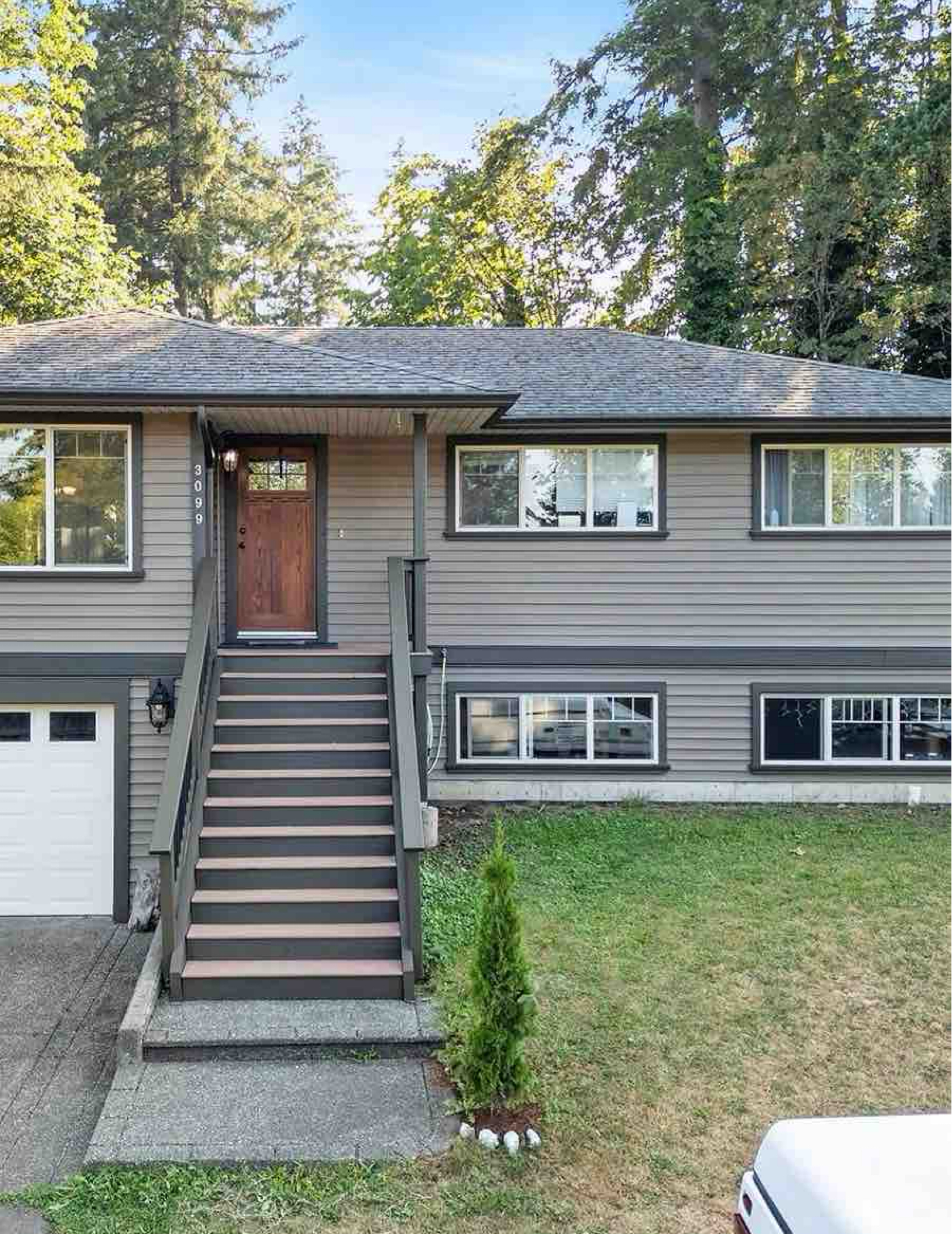

	11147 Southdale Road SW Aspen, Colorado
	Detached
	Sunny 13°
	Agent & Client
	Nik Campbell Report Sent 4:05 PM MST
	Gillian Watson 11147 Southdale Road SW nadine.beauchesne@gmail.com 9196257148
	Maureen Toole
	3:30 PM Start Time

the

From the disciplined approach of gathering information & curating, to the mixture of photos & clear narratives. The Method was founded on pure construction experience.

Designed to CONNECT you with the information to help make an informed decision & built to do one thing really well:

Drive the point home.

"Tell the story, share the knowledge & inspire action"

the

thank you	5
icons & legends	6
the summary	7
Sewer	8
72 seconds	13

thank you

Thanks for choosing us for your sewer scope. I really appreciate your confidence in us & it was my pleasure to serve you today.

I will be your primary contact & I will do anything I can to make sure you are fully clear on my findings today.

Please feel free to contact us if you have any questions of if you need further information. We will gladly answer any questions.

With Appreciation,

Nik Campbell

4168296530
campbellnikk22@gmail.com

72 Seconds

icons &

	*It’s a snap! Here are some key terms you’ll see throughout.*
Iconography	Sometimes we use icons or example images when it provides a more effective representation.
	Immediate Attention There's some real urgency on the fix.
	Attention Heads up! This may need to be fixed very soon.
Not Inspected	Limits out of our control & or outside of our SOP's
Hand Gestures	Non-verbal communication in a photo that packs a punch.
Issue:	Identify the problem if there is one
Action:	Recommended path to address the issue
L:	Location where it is found
T:	Typical Tradesperson
R:	Reason why it wasn't inspected
$ / $$ / $$$	Merely a rough guide of overall cost.

Sewer

Findings @: 80-93 feet: Issue: Root Intrusion/Blockage
Action: Improve
Notes: Root intrusion creating blockage. Unable to pass. Send footage to sewer remediation specialist. Improve as required.

Findings @: 20-40 feet: Issue: Build-up
Action: Hydro Jet/Auger
Notes: Build-up observed along pipe material. Recommend hydrojetting/augering. Send footage to sewer remediation specialist. Improve as required.

Findings @: 40-60 feet: Issue: Offset/Build-up
Action: Monitor/Hydro Jet
Notes: Build-up & offset observed along pipe material. Send footage to sewer remediation specialist. Improve as required.

Findings @: 60-80 feet: Issue: Offsets
Action: Monitor/Improve
Notes: Offsets observed along pipe material. Monitor or send footage to sewer remediation specialist. Improve as required.

Sewer

S BACK TO SUMMARY		Detailed Section Overview Below, you will find detailed photographs and insights specific to this area. Regular inspections and maintenance of these components are essential to uphold their integrity and performance over time.

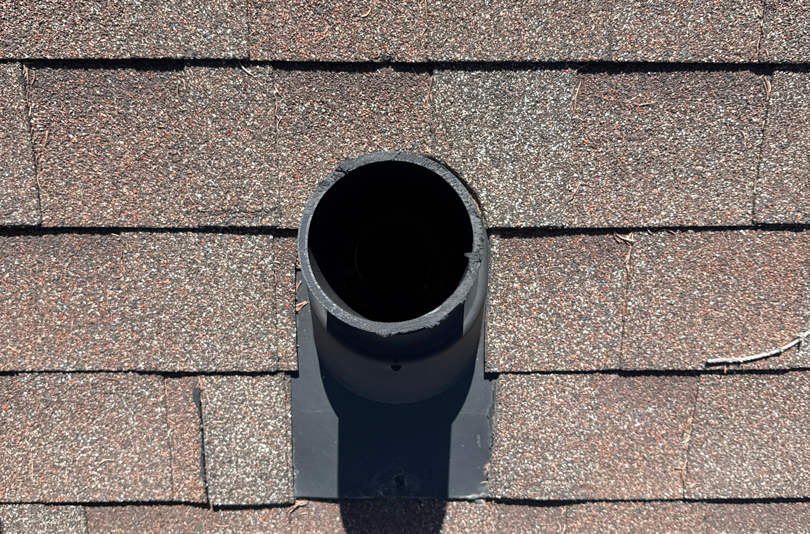

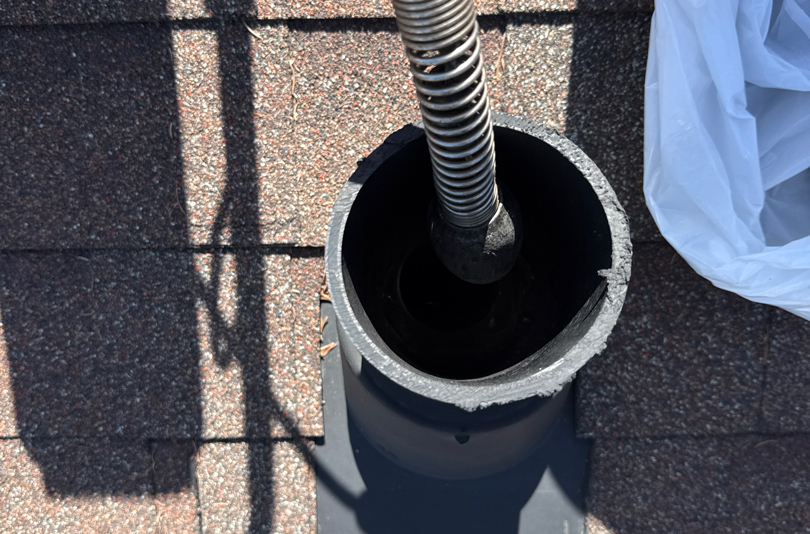

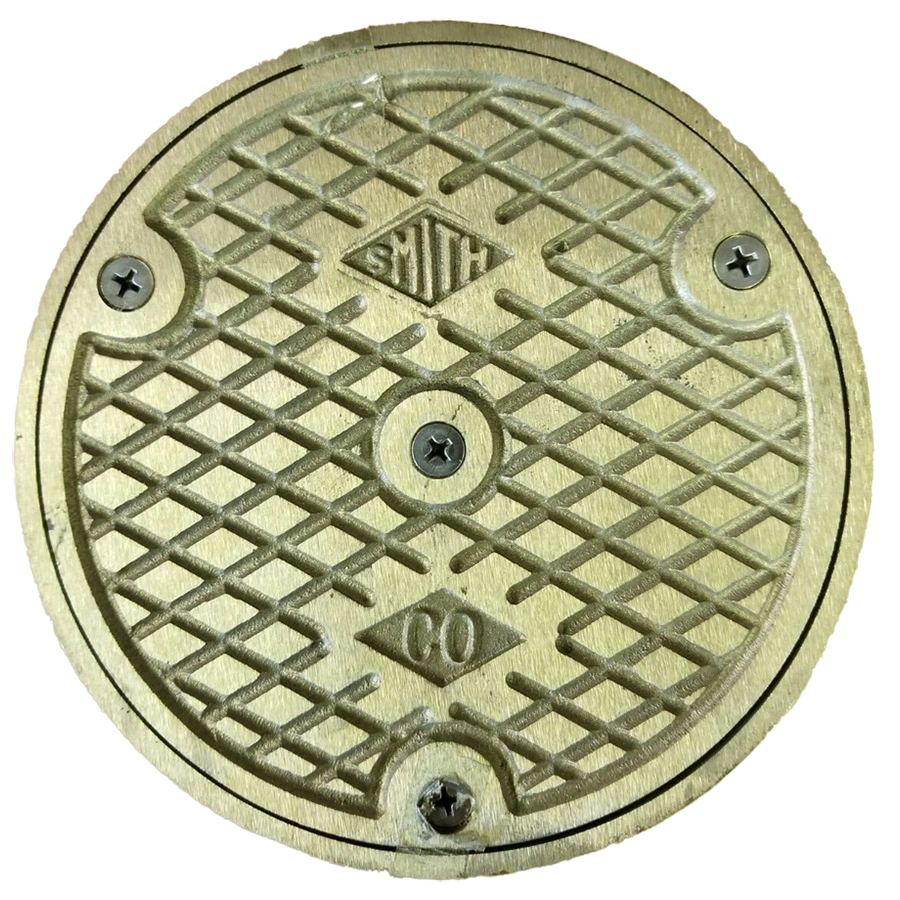

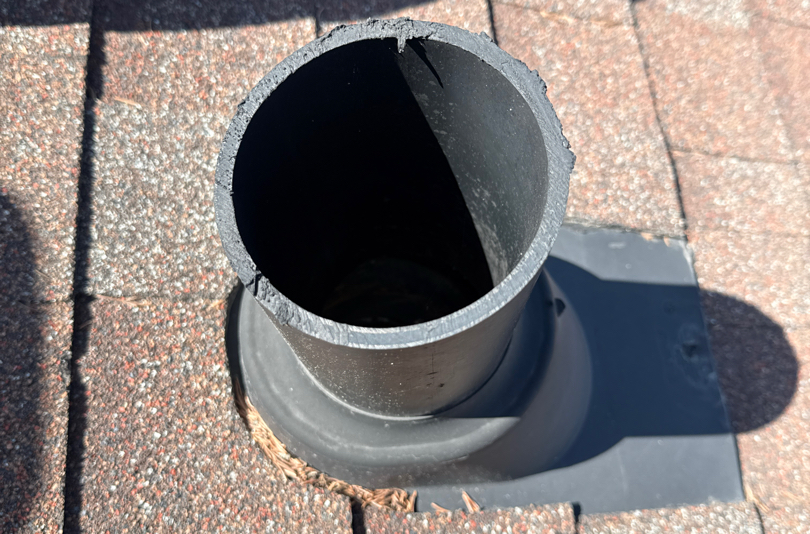

		Sewer Line Access Location The roof access was selected.
		Sewer Line Material & Notes Suspected materials seen within the sewer line included: ABS (acrylonitrile butadiene styrene), cast iron & concrete. It is recommended to have scope inspections performed & compared to today’s footage on a regular basis.
		Sewer Line Access Location After The access area was cleaned and sanitized after the operation. Another tidy job :)

Sewer

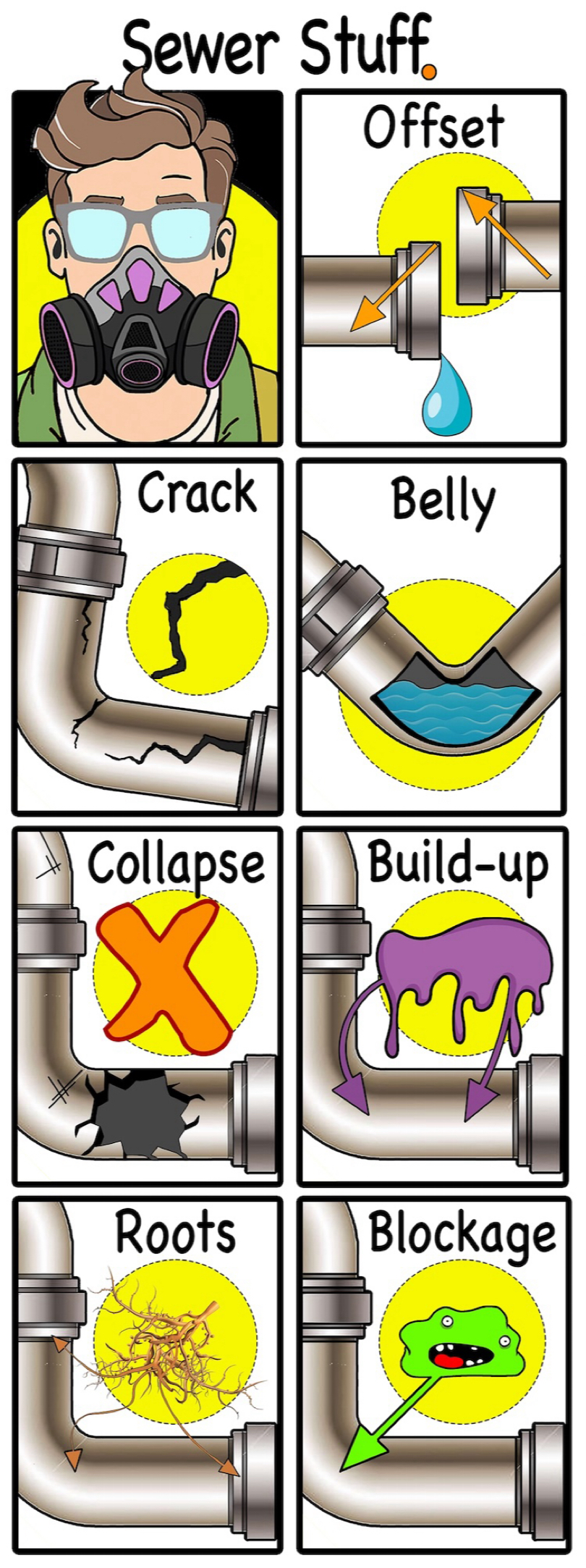

Typical Sewer Issues CLOGS / OBSTRUCTIONS
Over time, clogs & obstructions can form within your sewer line. Cooking oils and grease are particularly nasty since they can easily adhere to the pipe’s walls and allow other debris to stick to them.

ROOT INTRUSION
Tree roots are surprisingly strong. Freeze-thaw cycles and ground shifting put additional stress upon sewer lines and when a vulnerability occurs in the pipe, tree roots can enter seeking out exactly what sewer lines provide them; water, air, and nutrients. Once they enter, they’re difficult to remove, and having an auguring service on a scheduled basis becomes one of your best bets at maintaining proper flow.

OFFSET PIPE JOINTS / SEPARATION
When sewer lines are installed in sections, they can become misaligned over time due to ground movement and/or tree roots surrounding the pipe. Major offsets can impede the flow of waste and, in some cases, cause a backup into the home. Offsets are a tree root’s best friend; allowing easier access to enter the pipe. Fixing major offsets involve either excavating the damaged section or using trenchless methods like “pipe bursting”.

SAGGING / BELLYING
Bellies, or sagging within sewer lines, create low spots that are prime targets for the collection of debris and build-up. When this occurs, flow can be drastically impeded - which can eventually lead to a sewer backup. Major bellies are a result of sections of the pipe having insufficient slope to carry waste away from the home - often needing excavation to fix the problem.

Sewer

		You are here Sewer Notes Roots & build-up observed throughout pipe material. Send footage to sewer remediation specialist for improvements.

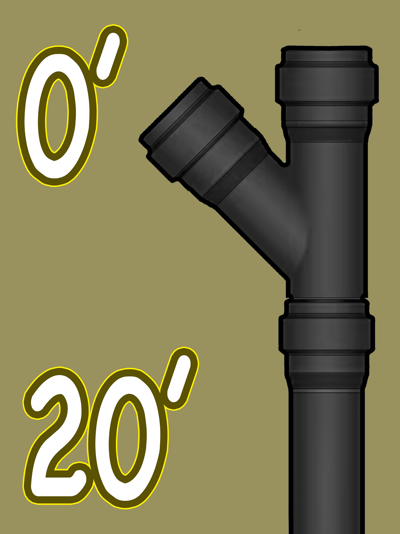

		0-20 FEET You are here. Findings @: 0-20 feet

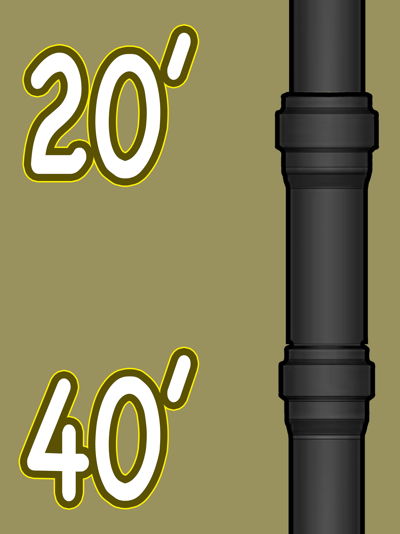

		20-40 FEET Findings @: 20-40 feet Build-up observed along pipe material. Recommend hydrojetting/augering. Send footage to sewer remediation specialist. Improve. Build-up. Hydro Jet/Auger.
		40-60 FEET Findings @: 40-60 feet Build-up & offset observed along pipe material. Send footage to sewer remediation specialist. Improve as required. Offset/Build-up. Monitor/Hydro Jet.

Sewer+

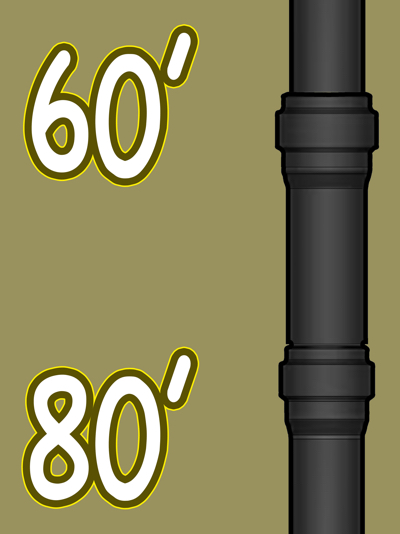

		60-80’ Findings @: 60-80 feet Offsets observed along pipe material. Monitor or send footage to sewer remediation specialist. Improve as required. Offsets. Monitor/Improve.

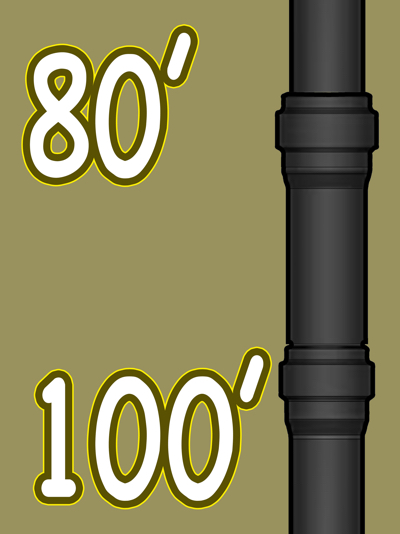

		80-100’ Findings @: 80-93 feet Root intrusion creating blockage. Unable to pass. Send footage to sewer remediation specialist. Improve as required. Root Intrusion/Blockage. Improve.
		That’s all folks!

Sewer+

Solving Sewer Snags Here are the common techniques ised to improve or fix sewer line issues depending on the severity and nature of the problem: 1. Auguring: This method uses a motorized drain snake to clear blockages such as tree roots or accumulated debris. It's effective for removing immediate obstructions and restoring flow. 2. Hydro Jetting: A high-pressure water stream is used to thoroughly clean the inside of sewer pipes, removing grease, scale, and other stubborn residues. This method not only clears blockages but also helps maintain pipe health. 3. Installing a CIPP Liner (Cured-In-Place Pipe Liner / Sewer Sleeve): This is a trenchless rehabilitation method where a resin-saturated felt tube is inserted into the existing pipe and cured to form a new pipe within the old one. It’s ideal for repairing leaks, cracks, and enhancing the structural stability of the sewer line without excavation. 4. Pipe Bursting: Another trenchless technique, pipe bursting involves breaking the old pipe while simultaneously pulling a new pipe into place. This method is suitable for replacing severely damaged pipes. 5. Excavation: In cases where trenchless methods are not suitable, excavation is used to physically access and replace or repair the damaged section of the sewer line. This method is more invasive and used when other techniques are not feasible. Each of these services offers a specific solution to maintain, repair, or improve a home's sewer line, enhancing its functionality and longevity. Regular inspections and timely interventions can prevent major disruptions and costly overhauls.

72 seconds

THE VIDEO

Only people you share this report or the video link with will have access to the video.

It is advised that you monitor the rate of drainage throughout the home and have the sewer line further evaluated at first signs of persistent slow drains.

Press play button ;)
